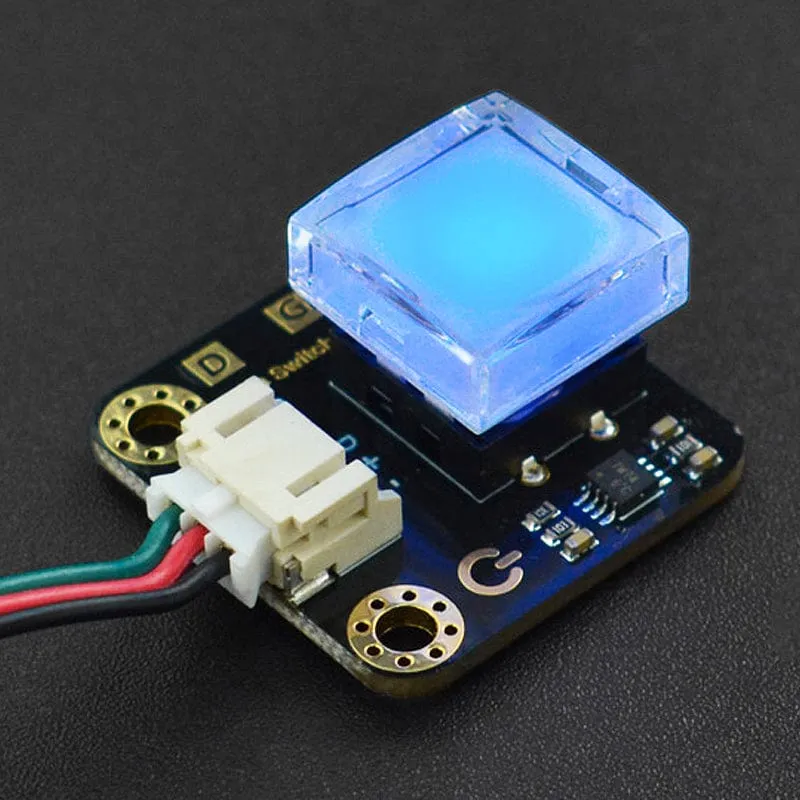

This is a simple LED-illuminated self-lock switch button. It’s just like a basic switch button, but it lights up color(red/yellow/green/blue/white) when pressed down, which gives you visual feedback. These little buttons can be used with micro: bit to realize various fun interactive projects, such as switch, backlight keyboard, music player panel, and recording control panel.
Note: The module comes with self-lock function. When the button is pressed down, the module outputs High, and the LED lights up. When being pressed again, the module outputs Low and the LED turns off.
Features
- Internal LED turns On when the button is pressed down
Connection Diagram - Micro:Bit with IO Extender
Specifications
- Operating Voltage: 3.3-5V (3.3V is recommended)
- Output: digital
- Connector: PH2.0-3P

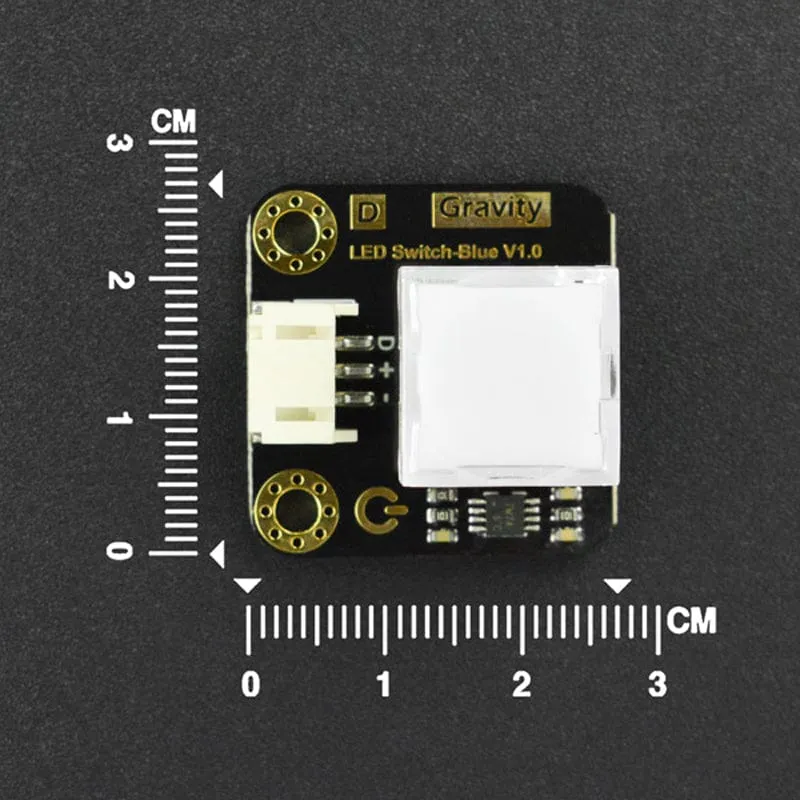

- Dimension: 27×26.5mm
- Colors Available: red, yellow, green, blue, white
Resources

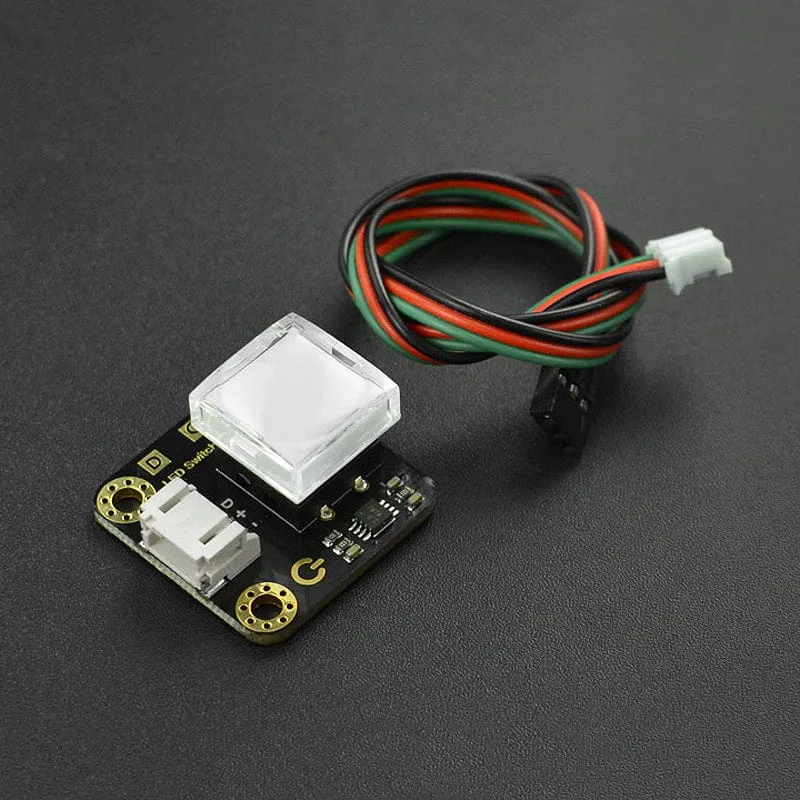

Package Contents
- 1x Gravity: LED Switch
- 1x Digital Sensor Connector
