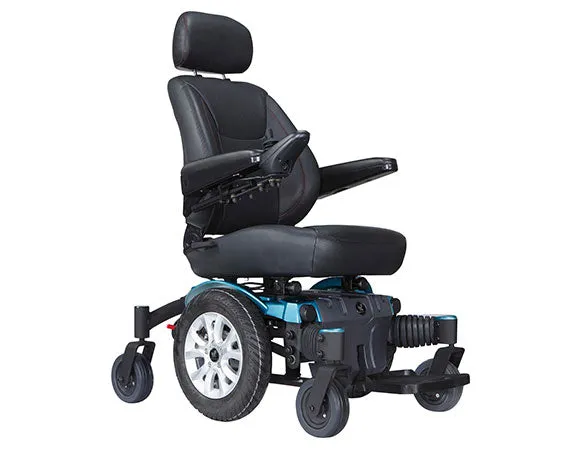

The Ev Rider Heartway P3DXC MAXX C Electric Wheelchair is now in stock at the ewheelsshop.com
The Heartway P3DXC MAXX C is a mid drive power wheelchair designed with a low center of gravity and compact turning radius. The MAXX C uses a 6 wheel on the ground design for added stability and smooth ride. The MAXX C has a deluxe captains seat with adjustable backrest and flip up foot plate
The MAXX C uses two 450 watt motors and a 90 amp VR2 controller. The MAXX C uses two 12v 50ah batteries and has a range up to 20 miles. It has 14" x 3" pneumatic drive wheels and 6" x 2" solid front caster wheels.
- 6 wheels on the ground offers stability and a smooth ride
- Deluxe captain seat with adjustable backrest
- 14" x 3" pneumatic drive wheels and 6" x 2" solid front casters
- Can support up to 350 lbs
- Weighs 251 lbs with batteries
- Two powerful 450 Watt 4-pole motors
- Uses two 12V 50AH batteries
- Up to 20 mile range per charge
PRODUCT SPECIFICATIONS
|
Weight Capacity |
350 lbs (160 kgs) |
|
Seat Type |
Captain Seat: 20" |
|
Drive Wheel |
14" x 3" (360 mm x 75 mm) |
| Front Caster | 6"x2" (155 mm x 50 mm) |
|
Rear Caster |
6"x2" (155 mm x 50 mm) |
|
Max Speed |
6 MPH (10 KPH) |
|
Battery Specifications |
12V 50Ah |
|
Battery Range |
18 miles (30 km) |
|
Charger Type |
5 Amp,Off Board 120/240 Volt |
|
Controller Type |
VR2 90Amp |
|
Motor Type |
450W(4-Pole) x 2pcs |
|
Weight w/ Battery |
215 lbs (98 kg) |
|
Weight w/o Battery |
151 lbs (69 kg) |
|
Turning Radius |
19.6" (500 mm) |
|
Suspension |
Drive Wheel / Front Caster |
|
Ground Clearance |
3" |
|
Length |
36.5" (930 mm) |
|
Wide |
23.5" (600 mm) |
|
Height |
43" (1100 mm) |
|
Seat Heigth |
Captain Seat : 530 mm (20.8") |
|
Seat Depth |
18" (460 mm) |
|
Back Height |
27" (685 mm) |
|
Footrest |
15.7" (400 mm) |
