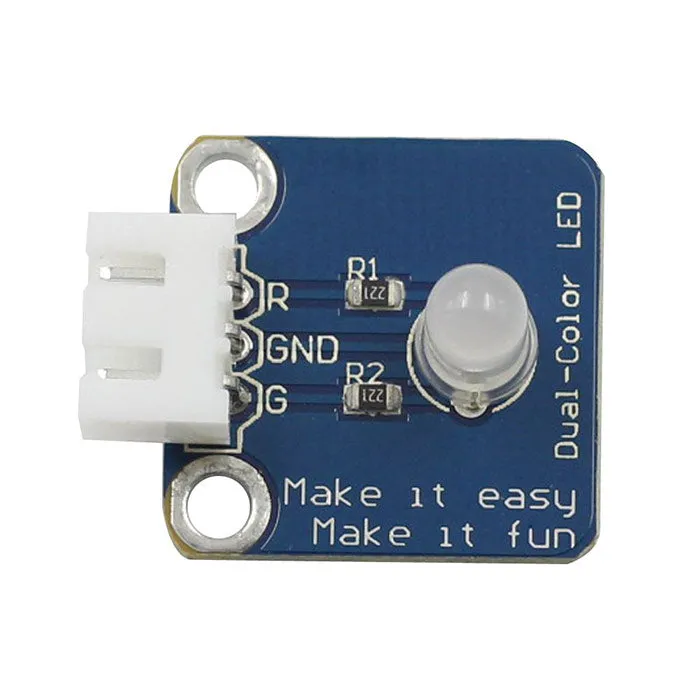

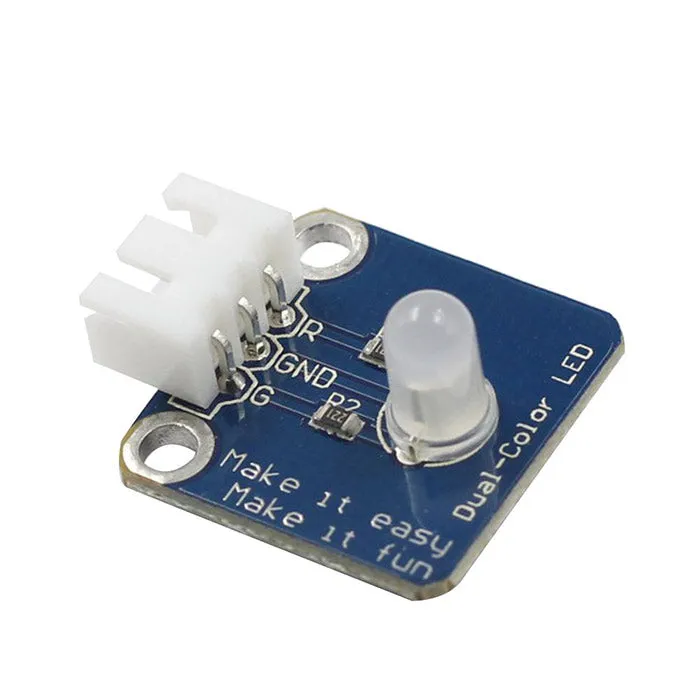

A dual-color light-emitting diode (LED) is capable of emitting two different colors of light, typically red and green, rather than only one color. It is housed in a 3mm or 5mm epoxy package. It has 3 leads; a common cathode or common anode is available. A dual-color LED features two LED terminals, or pins, arranged in the circuit in anti-parallel and connected by a cathode/anode. Positive voltage can be directed towards one of the LED terminals, causing that terminal to emit light of the corresponding color; when the direction of the voltage is reversed, the light of the other color is emitted. In a dual-color LED, only one of the pins can receive voltage at a time. As a result, this type of LED frequently functions as indicator lights for a variety of devices, including televisions, digital cameras, and remote controls.

Specification

• Use a dual-color LED that is capable of emitting light of two different colors, typically red and green, rather than only one color.
• The LED is a common cathode one.
• PCB size: 2.0 x 2.0 cm.
• Working voltage: 3-5V DC.

Package List

• Dual-color LED module x 1
• 3-Pin anti-reverse cable x 1
