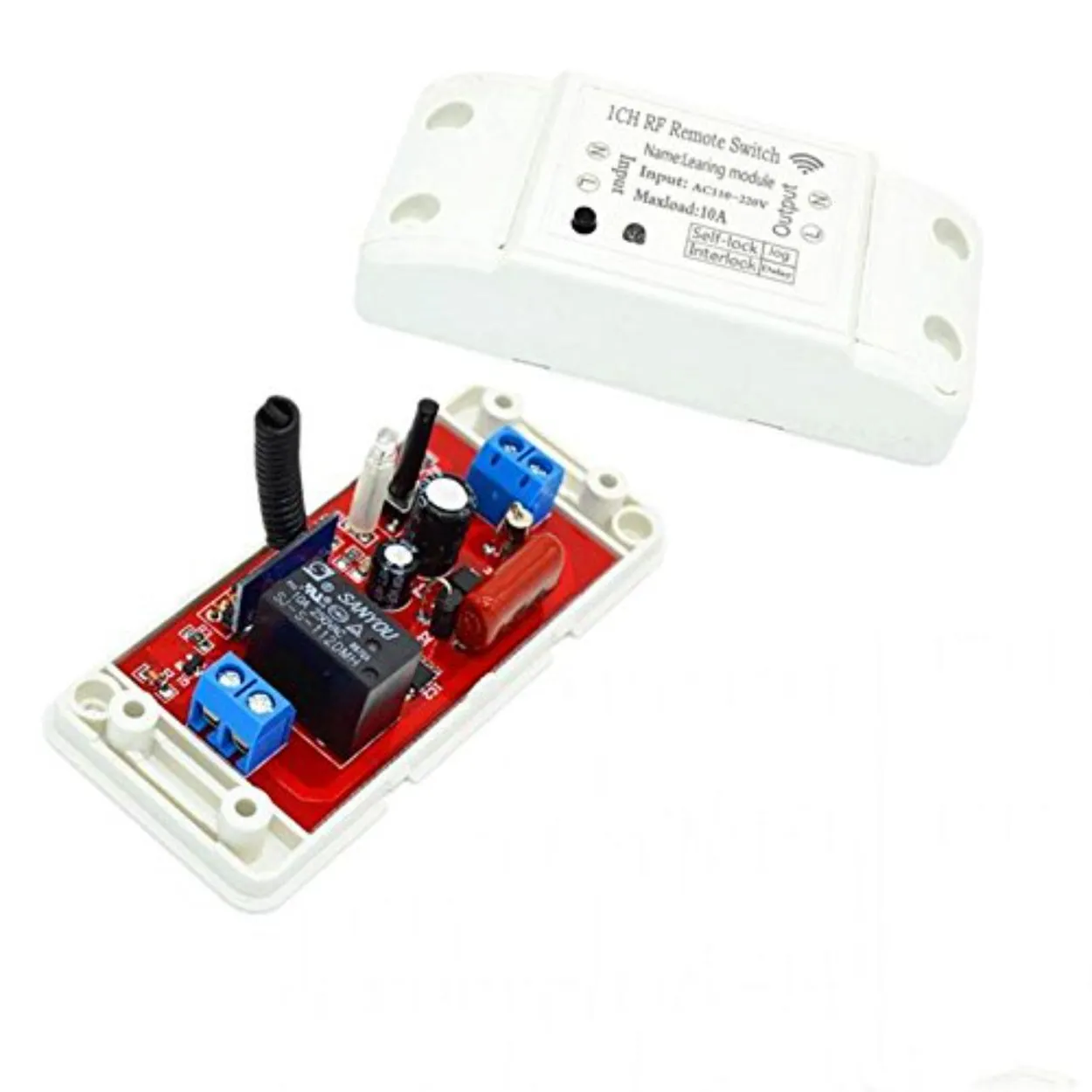

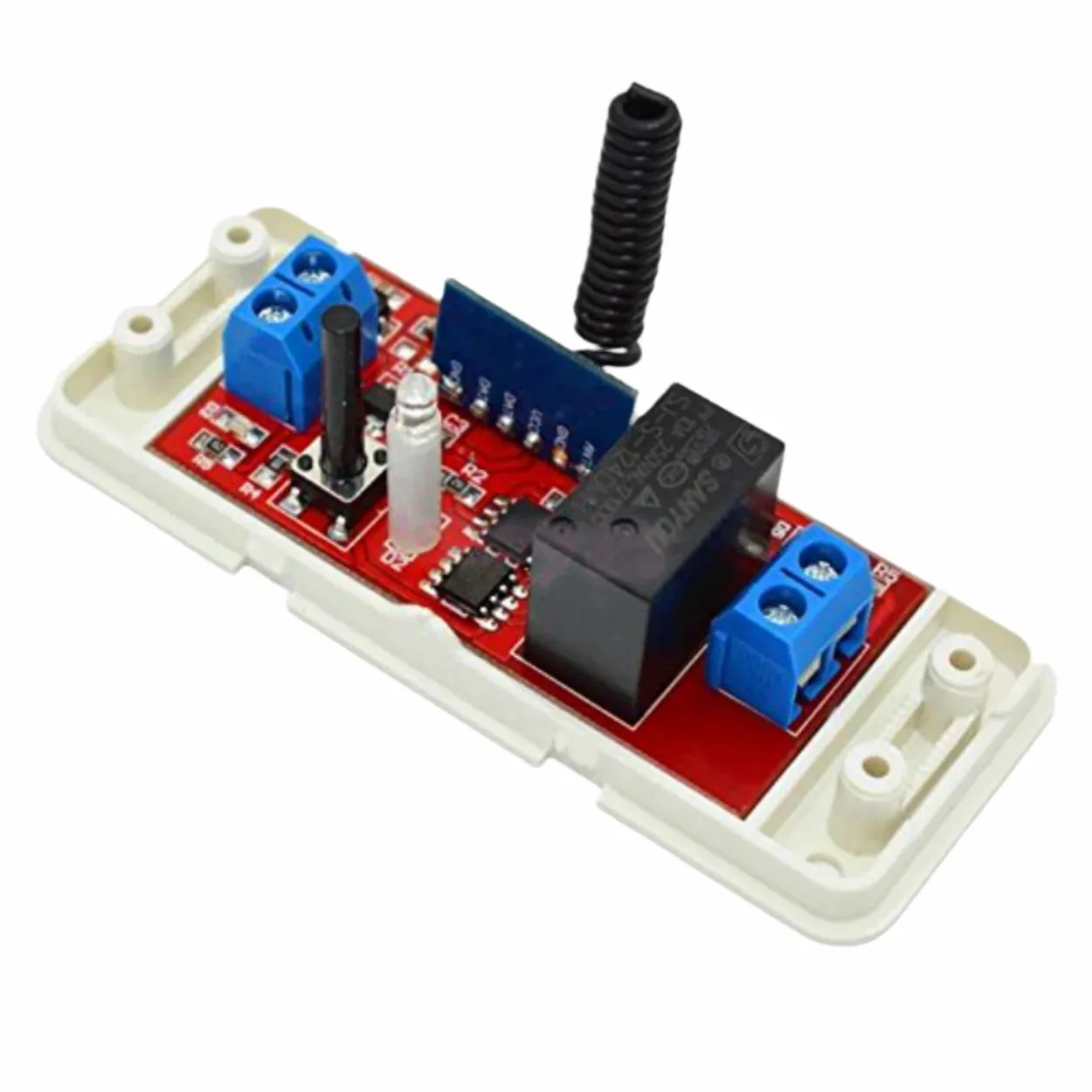

Generic 220V One-Channel RF Wireless Relay Module with Remote Control is a one-channel latching relay module. The output of the module is a passive output and it can be controlled by its 2-button RF wireless controller when the module is powered on. The module comes equipped with suitable remote control. It also can drive most household electrical appliances. The operating frequency for the module is 433 MHz and the operating voltage is 220 v. Also, the module comes with a dedicated remote. Moreover, the relay used in this module is a high current relay. There are indicator LEDs on the module for power output status. The application for this module includes different devices with different current ratings.
Technical Details
- AC 220V Home lighting system
- Remote control switch
- Smart Home / Home Automation
- Garage Door
- Remote controlled gates
- Security Monitoring
- LED lighting
Features
- Work status: Self-locking
- Dedicated remote.
- Indicator LEDs.
- Ideal for home automation.
Physical Attributes
- Size (in the control panel) : 80 x 50 x 30 mm (length x width x height).
- Weight in Gram: 75
Package Includes

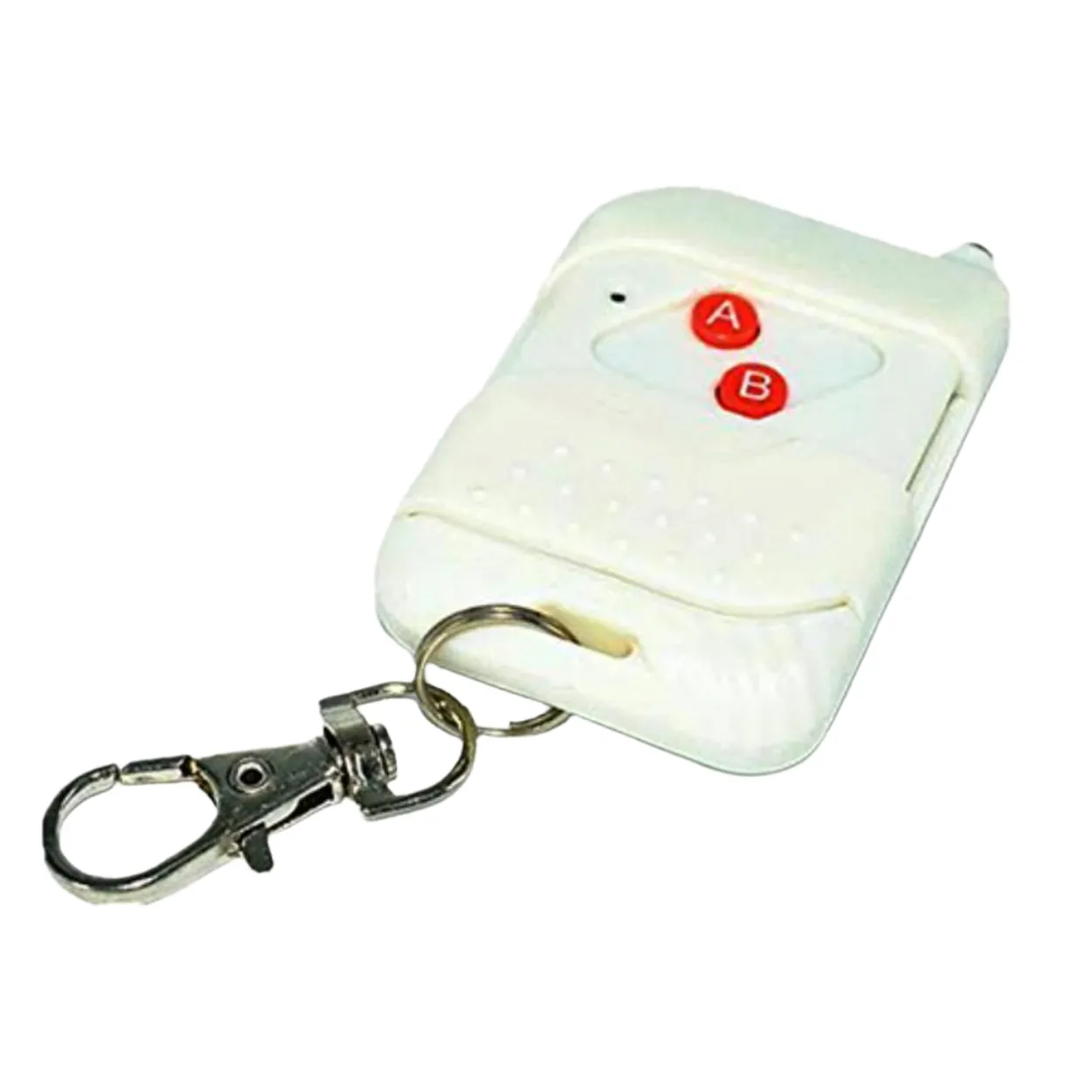

- 1 x 433M Wireless Remote Switch / 220V Single Wireless Switch 2 Button 433M Remote Controller
